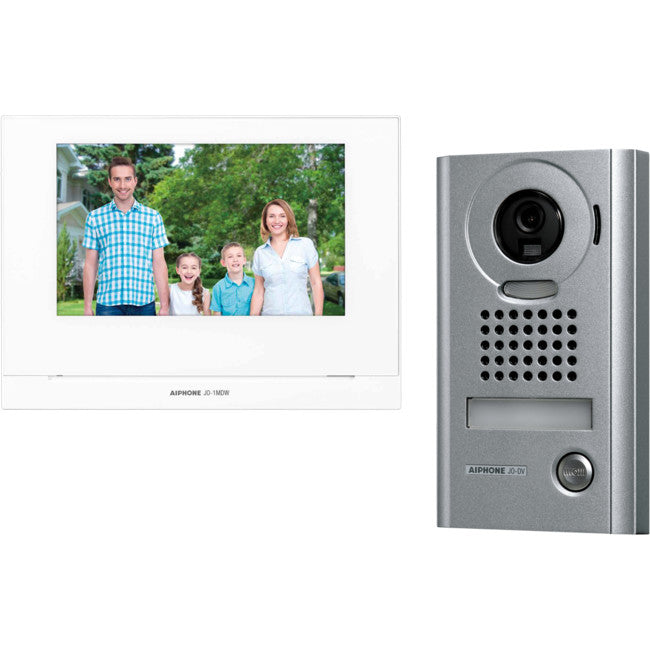

JOS1VW 7" WIRELESS VIDEO INTERCOM KIT WITH JO1MDW, JODV & P/S AIPHONE JOS1VW

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab features}

JOS-1VW includes JO-DV - Vandal resistant metal surface mount camera

7 INCH TOUCH SCREEN HANDS-FREE VIDEO INTERCOM SYSTEM WITH SMART PHONE CONNECTION

JO Series with smartphone connectivity. Enhanced convenience and security for your home and office

Answer calls anywhere inside or outside your home- Handledeliveries when not at home - Open your door from anywhere

Simple Installation

Connect all units in the system with just 2 wires.

Automatic updates ensure you always have the latest functionality and security

• Easy operation by 7-inch touch screen
• Total hands-free communication
• Zoom and wide screen

Video Recording

Record visitors even when not able to answer calls.

View the recordings from the master station or your smartphone.

Video memory

• Internal memory :10 calls(max)
• SD card :1,000 calls(max)
• Touch screen operation micro SD micro SDHC (4GB~32GB)



Touch Screen Operation

• Smartphone connection
  • Control whether calls are forwarded to mobile devices.
• Notifications
  • Confirm system updates and other important notifications.
• Play
  • Play and manage call recordings.
• Monitor
  • Monitor your door.
• Settings
  • Manage system settings.
• Door release
  • Operate the electrie lock connected to the masterstation.
• Option output
  • Control external devices connected to the master station.
• Talk
  • Communicate with the door stations



System Configeration

Max system Configeration

1 x Door - 2 x Room - 8 x Smartphone





Optional second wired Room station - JO-1FD can also be installed ( Note requires 2 x 2 core cable )



Door Station Options

Select from 3 different styles.

All options can handle tough weather conditions. .

JO-DA - Plastic surface mount camera

• IP54 - Dust and moisture resistant
• Nighttime LED

JO-DV - Vandal resistant metal surface mount camera

• IP54 - Dust and moisture resistant
• Ruggedized against vandalism
• ZINC material
• Nighttime LED

JO-DVF - Stainless Steel Flush fitting camera

• IP54 Dust and moisture resistant
• Ruggedized against vandalism
• STAINLESS STEEL material
• Nighttime LED

Smartphone Application provides connectivity everywhere

• Have the functionality of the master station in your pocket
• Answer calls from the door station.
• Monitor the door station.
• Operate electric locks while answering a call
• Control external devices while answering a call
• Switch between speakerphone mode and telephone mode asnecessary
• Zoom in and zoom out functions.

Connect your smartphone in 3 simple steps

1 Install application

• INTERCOM APP TypeB (iOS) INTERCOM APP TypeB (Android)

2 Register with master station

• Register by using a one-time password. PASSWORD 1234PASSWORD 1234
• No need to provide email or other personal details

3 Done

• Wi-Fi master station Smartphone or Tablet Have the functionality of the master station in your pocket



Compatible with existing JO series





{tab specifications}

JO-1MDW

Power Source	18V DC, Supplied from a power supply
Current Consumption	450mA(max.) 80mA(standby.)
Video Monitor	7’’ TFT LCD touch screen
Resolution	800×480 (approx.384,000 pixels)
Type of Communication	Open voice hands-free auto-voice actuation or Touch-to-talk communication
Ambient Temperature	0-40 degrees Centigrade
Wireless Lan Interface	IEEE802.11b/g/n
Video memory	Internal memory: 10 calls(max.) (10 seconds/call) SD card: 1,000 calls(max.)(10 seconds/call)
Protect video	Internal memory: 5 calls(max.) micro SDHC card: 100calls(max.)
SD Card	micro SDHC card: 4GB-32GB
Door Release contact	24V AC/DC, 1A (N/O dry closure contact)
Option button output	24V AC/DC, 1A (N/O dry closure contact)
Mounting	Surface wall mount
Material	Unit case: Self-extinguishing PC + ABS resin Surface panel: Glass
Weight	Approx.620g

JO-DA

Power source	Supplied from Master monitor station or Expansion monitor station
Type of Communication	Open voice hands-free communication
Camera	1/4 inch color CMOS
Ambient Temperature	-20~+60°C(-4~+140°F)
Mounting	Surface wall mount
Material	Self-extinguishing PC + ABS plastic
Weight	Approx.200g
IP rating	IP54
IK rating	-

JO-DV

Power source	Supplied from Master monitor station or Expansion monitor station
Type of Communication	Open voice hands-free communication
Camera	1/4 inch color CMOS
Ambient Temperature	-20~+60°C(-4~+140°F)
Mounting	Surface wall mount
Material	Front panel: Zinc die cast. Main unit:Self-extinguishing PC + ABS resin
Weight	Approx.200g
IP rating	IP54
IK rating	IK08

JO-DVF

Power source	Supplied from Master monitor station or Expansion monitor station
Type of Communication	Open voice hands-free communication
Camera	1/4 inch color CMOS
Ambient Temperature	-20~+60°C(-4~+140°F)
Mounting	Flush mount (Mounts on built-in back box)
Material	Front panel: Stainless steel. Main unit: Self-extinguishing PC + ABS resin
Weight	Approx.200g
IP rating	IP54
IK rating	IK07



{/tabs}
